CD Wire Rope Hoists / 10 t

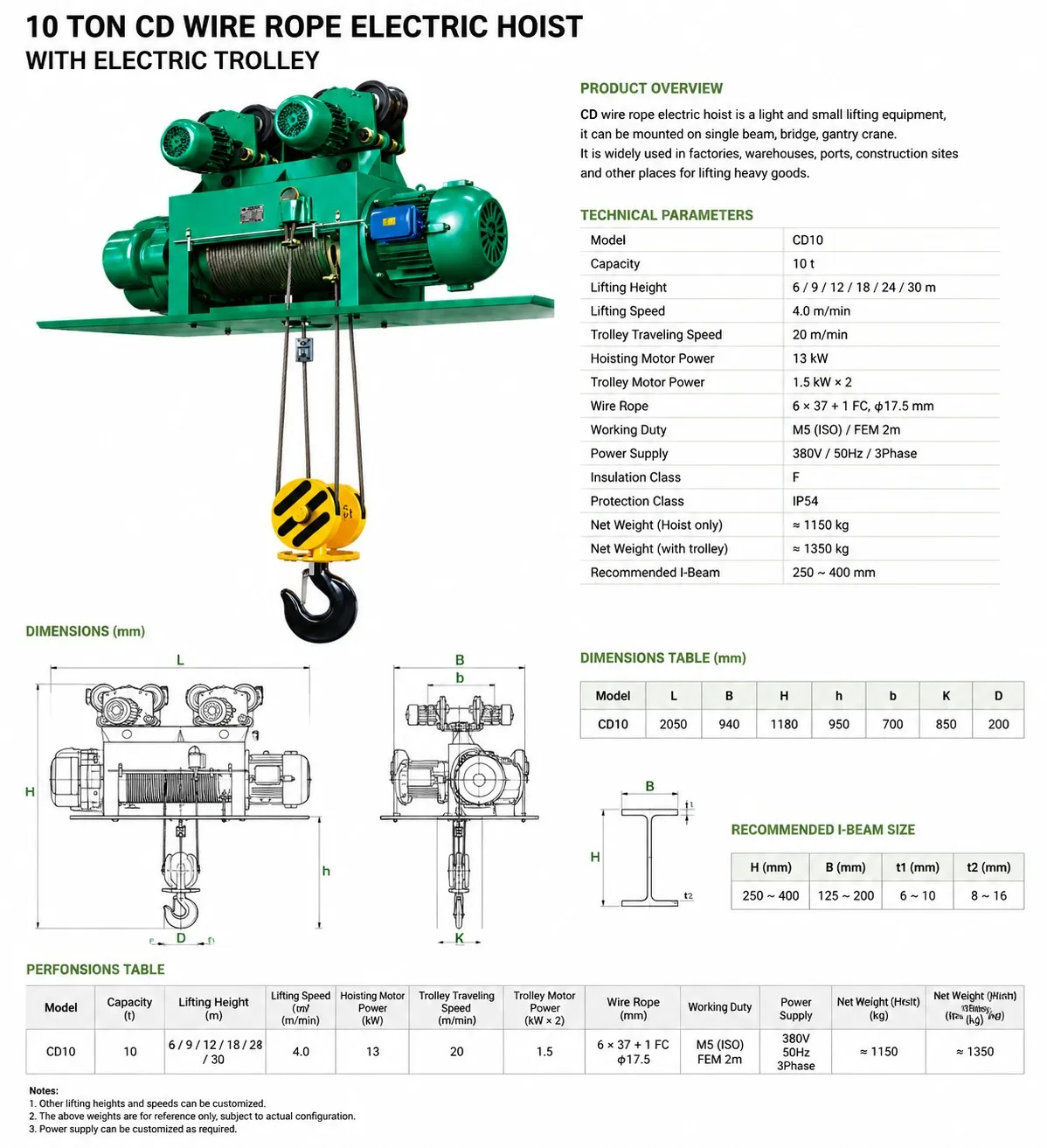

CD 10 t Specification Sheet
CD 10 t Wire Rope Electric Hoist
Electric trolley configuration. Figures from the supplied series table; confirm your final specification before ordering.
- Rated capacity
- 10 t
- Lifting height
- 6 / 30 m
- Lifting speed
- 8 m/min
- Travelling speed
- 20 m/min
- Wire rope model
- 6×37–15–200
- Hoisting motor
- LZX-10T / 13 kW
- Motor rotation speed
- 1380 r/min
- Power
- 380 V / 440 V, 50 Hz
Product Specifications
| Rated capacity | 10 t |
|---|---|
| Lifting height | 6 / 30 m |
| Lifting speed | 8 m/min |
| Travelling speed | 20 m/min |
| Wire rope model | 6×37–15–200 |
| Hoisting motor | LZX-10T / 13 kW |
| Motor rotation speed | 1380 r/min |
| Power | 380 V / 440 V, 50 Hz |
Values above reproduce the existing product summary. Read the original technical image for additional dimensions and configuration details.
Request This Product Configuration
Use the original specification sheet on this page to identify the required configuration. Include the product model, quantity, destination and any application requirements in your inquiry. Confirm any value or option that is not stated on the supplied sheet before ordering.
